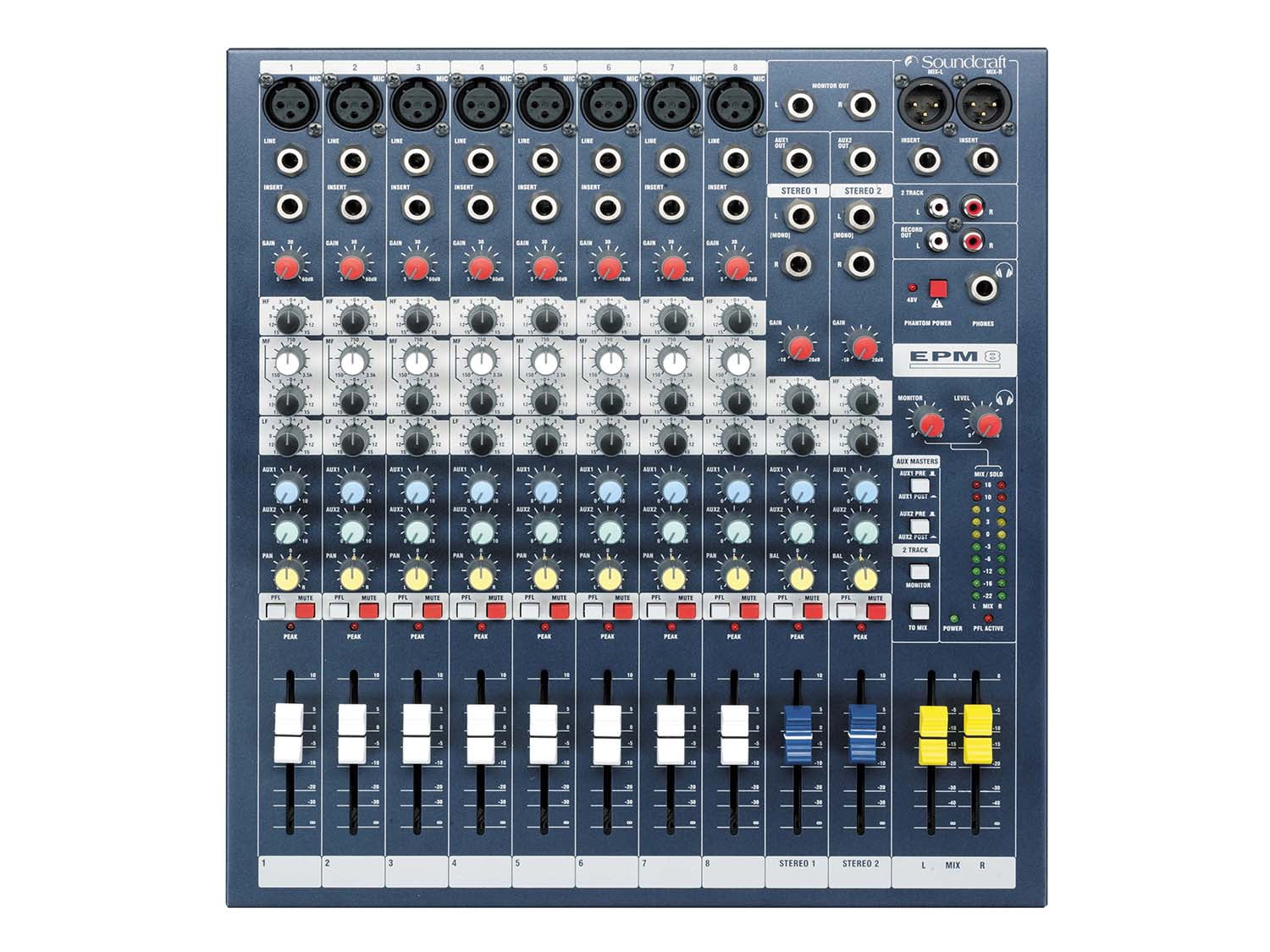

Soundcraft EPM8 8 Mono+2 Stereo Ch. 2 Bus Recording Mixer+Condenser Microphone
Product details
| Management number | 238230248 | Release Date | 2026/07/11 | List Price | US$163.96 | Model Number | 238230248 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
<p><b>Package Includes:</b><br>(1) Soundcraft EPM8 8 Mono+2 Stereo Channel 2 Bus Recording/Live Mixer Console EPM 8<br>(1) Rockville RCM PRO Studio/Recording Condenser Microphone w Samsung Capacitors</p><hr><p><b>Features of EPM8:</b><br>Soundcraft EPM8 8 Mono+2 Stereo Channel 2 Bus Recording/Live Mixer Console EPM 8<br>2 configurable auxiliary buses<br>XLR-type and ¼” metal jack connector sockets<br>RCA phono stereo playback inputs and record outputs<br>3-band EQ with a swept mid on mono inputs<br>2-band EQ on stereo inputs<br>TRS insert sockets and inserts on all mono inputs and mix output<br>Ten-segment LED output metering<br>Intuitive and comprehensive solo system<br>Headphone output<br>Easily rack mountable<br>The Soundcraft EPM will find itself in many applications including live music,recording, houses of worship and multi-speaker installations.</p><a href="https://3e7777c294b9bcaa5486-bc95634e606bab3d0a267a5a7901c44d.ssl.cf2.rackcdn.com/product_documents/documents/2097_1422397691/EFXEPM-UG-20101130_original.pdf">Owner's Manual</a><hr><b>Video of RCM PRO:</b><br><center><div class="videoframe"><video controls="controls" preload="none" src="https://player.vimeo.com/external/264977182.hd.mp4?s=7db6c76281738c46b9bfd7979574ba57bf3a56b6&amp;profile_id=175" poster="https://smhttp-ssl-33159.nexcesscdn.net/Assets/thumbnails/RCM-PRO.jpg" width="640" height="360"></video></div></center><br><p><b>Features:</b><br>Power Requirements: 48V DC&nbsp;Phantom Power<br>Output Connector: 3-Pin XLR<br>Product Weight: 0.74 Lbs<br>Product Height: 7.44&quot; inches<br>Shipping Weight: 3.32 Lbs<br>Shipping Dimensions: 13.98&quot; x 7.87&quot; x 3.15&quot;<br><a href="http://www.rockvilleaudio.com/content/Manuals/RCMPRO_Manual.pdf">Owner's Manual</a></p>
Package Includes: (1) Soundcraft EPM8 8 Mono+2 Stereo Channel 2 Bus Recording/Live Mixer Console EPM 8.
(1) Rockville RCM PRO Studio/Recording Condenser Microphone w Samsung Capacitors.
Features of EPM8:
- Soundcraft EPM8 8 Mono+2 Stereo Channel 2 Bus Recording/Live Mixer Console EPM 8.
- 2 configurable auxiliary buses.
- XLR-type and ¼” metal jack connector sockets.
- RCA phono stereo playback inputs and record outputs.
- 3-band EQ with a swept mid on mono inputs.
- 2-band EQ on stereo inputs.
- TRS insert sockets and inserts on all mono inputs and mix output.
- Ten-segment LED output metering.
- Intuitive and comprehensive solo system.
- Headphone output.
- Easily rack mountable.
- The Soundcraft EPM will find itself in many applications including live music,recording, houses of worship and multi-speaker installations.

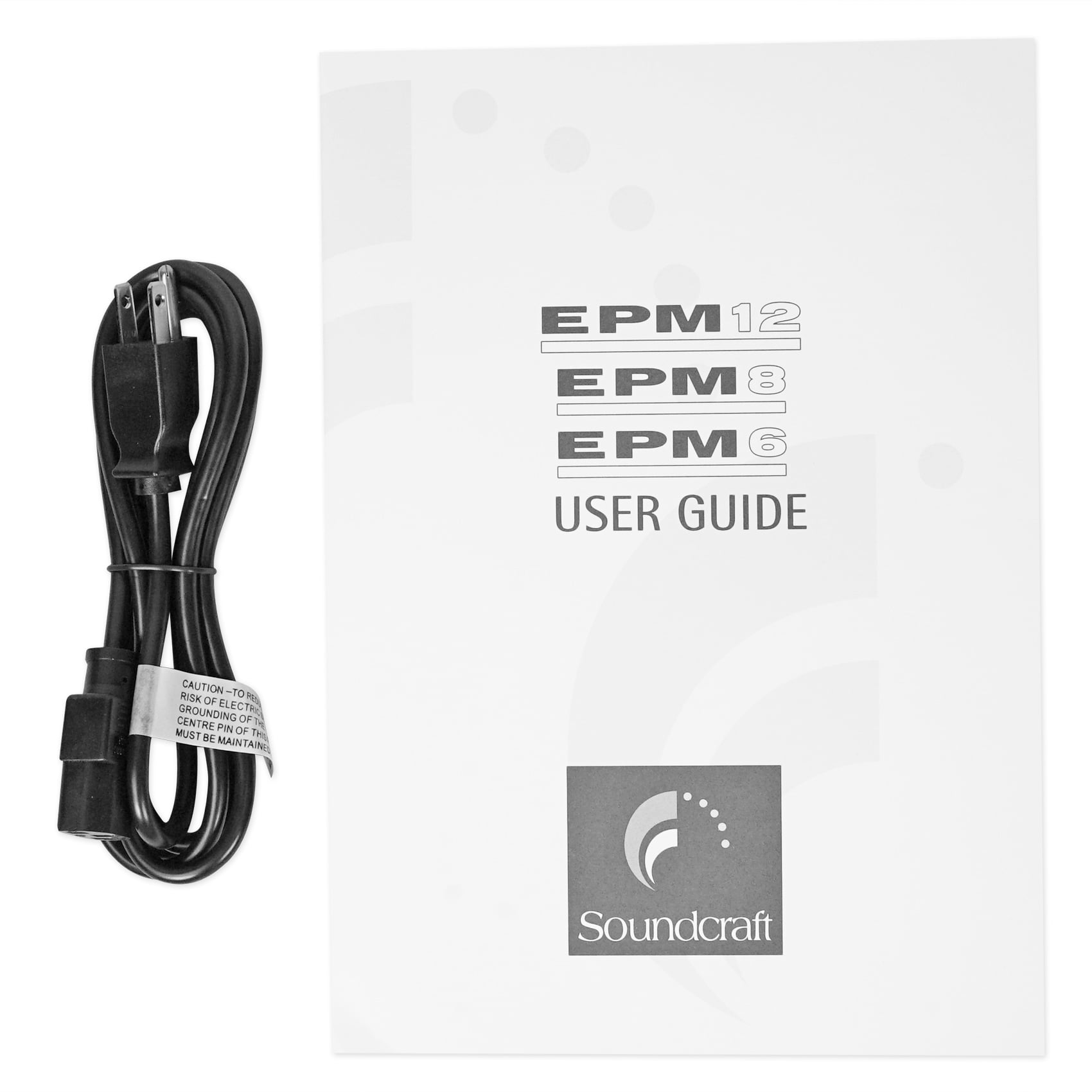

Owner's Manual
Video of RCM PRO:
Features:
- Power Requirements: 48V DC Phantom Power.
- Output Connector: 3-Pin XLR.
- Product Weight: 0.74 Lbs.
- Product Height: 7.44" inches.
- Shipping Weight: 3.32 Lbs.
- Shipping Dimensions: 13.98" x 7.87" x 3.15".
- What's in the box: (22 gauge, 10 feet) xlr to xlr cable - to connect to the phantom power input on your mixer or interface (22 gauge, 10 feet) 3.5mm to XLR Cable - To connect the microphone to your computer. Metal Shock Mount. Large Wind-Screen/Pop-Filter. Owners Manual. Warranty Card.
- Features: Rockville RCM PRO Professional Studio/Recording Condenser Microphone.
- Best Applications: Home-Studio, Recording Studio, Broadcasting, Podcasts, Live Performances and much more. Large diaphragm for smooth, natural sound and low noise. 25mm Large Cartridge - Allows For Bigger Pickup Area.
- Two Large Capacitors: 2250V and 4716V. Large Diaphragm - Provides Smooth Natural Sound and Great Bass, Mids, Highs. High SPL Handling and Wide Dynamic Range. Cardioid Polar Pattern Reduces Pickup of Sounds From Sides and Rear, Reducing Unwanted Noise.
- Element: Fixed-charge back plate, permanently polarized condenser. Microphone Head is Made of High Quality Steel featuring One-Piece Head Design. Microphone Body Is Made of Special Zinc Metal Material - Prevents Noise From Shock and Vibrations
- Frequency Response: 20Hz - 20 kHz.
- Open Circuit Sensitivity: -30dB 2dB (0dB = 1V/Pa @ 1 kHz).
- Impedance: 100 Ohms. Equivalent Noise Level: = 23 dB A (IEC581-5).
- Maximum Input Sound Level: 142dB SPL (THD = 1.0% @ 1 kHz).
- Electrical Current: 500Ua.
- Noise: 20dB SPL.
- Dynamic Range (Typical): 124 dB, 1 kHz @ Max SPL.
- Signal-to-Noise Ratio: 74 dB, 1 kHz @ 1 Pa.
- PCB Layout: Surface Mount.
- Fixed Crossover Filter Cutoff Frequency: 50Hz - 16 kHz.
- Owner's Manual
| Brand | Soundcraft |
|---|---|
| Audio mixer type | Mixer |
| Channels | 8 |
| Digital/analog | Analog |
| Is powered | Y |
| Connection | XLR, RCA |
| In/Out type | RCA |
| Inputs/Outputs | XLR-type and metal jack connector sockets RCA phono stereo playback inputs and record outputs |
| Features | Console, LED, Fixed, Natural, Wide, Electric, Low Noise |
| Accessories | XLR to XLR Cable, 3.5mm to XLR Cable, Metal Shock Mount, Large Wind-Screen/Pop-Filter, Owners Manual, Warranty Card |
| Weight | 19.9 lbs |
| Material | Steel |
| Input/output direction | Input, Output |
| Volts | 48 V |
| Model | EPM8+RCM PRO |
